Office Phone Booth Dimensions & Specification

Full dimensions and specification of the Maxi office phone booth: 1050 × 1050 × 2300 mm outside, 900 × 950 × 2110 mm inside, 313 kg. Tested acoustics, ventilation, lighting, power and a height-adjustable desk, all included for £3,325 + VAT.

Twin ventilation fans on the roof of the Maxi Phone Booth

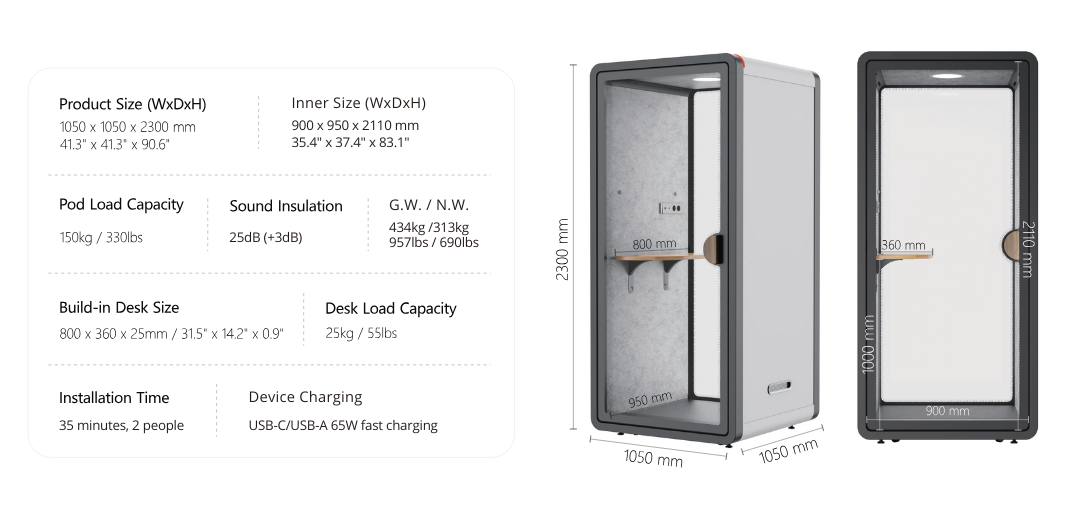

Maxi Phone Booth technical drawing with dimensions

Easy Installation.

Our Maxi Phone pod can be installed in eight separate steps. The panels arrive flat-packed and our own installation team assembles each pod on site in about an hour.

Delivery anywhere in the UK costs £250 per booth. Installation by our team is £850 for the first booth and £500 for each additional booth, chosen at checkout. A short site survey before installation confirms access and position.

Animation of the Maxi Phone Booth being assembled
Adjustable levelling foot and relocation wheel under the Maxi Phone Booth

Relocation wheels and adjustable feet.

When built, our Maxi Phone sits on its adjustable levelling feet, allowing it to be adapted to any slope or flooring. Should the pod need to be moved, these can be wound up to drop the pod onto its in-built relocation wheels, for full flexibility.

Tested acoustic performance.

Layered acoustic wall panels, finished in flame-retardant PVC film on a black aluminium frame, give a 28.6 dB speech level reduction (tested to ISO 23351-1 in a certified acoustic chamber), keeping calls confidential.

Felt-lined interior and desk of the Maxi Phone Booth seen from above
Installation step 3: place the left wall

Assembled on site in about an hour.

Our Maxi pods can be installed in a number of easy steps and take our team about an hour to install, with packaging removed afterwards.

Efficient lighting.

Each pod has warm white 2700K LED lighting, switched on automatically by 2 motion (PIR) sensors. These will activate when there is movement inside the pod and will automatically turn off 3 minutes after exit. This creates an energy efficient space that is perfect for any workplace.

Ceiling light set into the acoustic felt roof of the Maxi Phone Booth
Twin ventilation fans on the roof of the Maxi Phone Booth

Adjustable ventilation to tailor to users needs.

High powered fans produce efficient ventilation into the pod. This can be adjusted via dials to suit the user. The air inside the pod is fully exchanged every 80 seconds, to allow for a clean and cool place to work.

Double-glazed safety glass.

Each pod has double-glazed tempered safety glass: two 5 mm panes with an air gap between them for better sound insulation.

Double-glazed safety glass door of the Maxi Phone Booth
UK sockets and USB charging at the desk of the Maxi Phone Booth

Fast charging and electrification options.

Included as standard are electrification options within the pod. These include 2no. UK power sockets and a USB-A and C charging port. The USB ports boast a 65W power allowing for charging of laptops and other larger appliances. (suitable for laptops, monitors and phone chargers; not for heaters or other high-power appliances)

Height-adjustable desk.

A key feature of our Maxi Phone booth is the height-adjustable desk, which is included as standard. This has two pre-sets which automatically adjust to a set height for standing and sitting. If these don’t meet your height requirements then the user can change to whatever height they need. The desk also features a tablet stand.

Height-adjustable desk inside the Maxi Phone Booth
Maxi Phone Booth wall and double-glazing construction

The perfect office pod for any space.

Maxi Phone Booth in an office
Maxi Phone Booths in an open-plan office
Maxi Phone Booth with a bookshelf beside a window
Phone booths in a modern office
